Samsung PM863 960 Gigabyte SSD Review

Ocaholic

Specifications / Delivery

Model	PM863 240 GB	PM863 480 GB	PM863 960 GB	PM863 1.92 TB	PM863 3.84 TB
Capacity	240 GB	480 GB	960 GB	1.92 TB	3.84 TB
Form Factor	2.5”	2.5”	2.5”	2.5”	2.5”
Controller	Samsung Mercury	Samsung Mercury	Samsung Mercury	Samsung Mercury	Samsung Mercury
Memory	TLC NAND 3D V-NAND 32 Layer	TLC NAND 3D V-NAND 32 Layer	TLC NAND 3D V-NAND 32 Layer	TLC NAND 3D V-NAND 32 Layer	TLC NAND 3D V-NAND 32 Layer
Throughput	520 MB/s sequential read 245 MB/s sequential write 99’000 IOPS 4K random read 10 ‘000 IOPS 4K random write	525 MB/s sequential read 460 MB/s sequential write 99’000 IOPS 4K random read 17 ‘000 IOPS 4K random write	520 MB/s sequential read 475 MB/s sequential write 99’000 IOPS 4K random read 18 ‘000 IOPS 4K random write	510 MB/s sequential read 475 MB/s sequential write 99’000 IOPS 4K random read 18 ‘000 IOPS 4K random write	540 MB/s sequential read 480 MB/s sequential write 99’000 IOPS 4K random read 18 ‘000 IOPS 4K random write
QOS 4KB, QD32 (99.99%)	0.6 ms read 5.0 ms write	0.6 ms read 7.0 ms write		0.6 ms read 5.0 ms write
Latency	55 us sequential read 45 us sequential write 115 us random read 55 us random write	55 us sequential read 45 us sequential write 115 us random read 55 us random write	55 us sequential read 45 us sequential write 115 us random read 55 us random write	55 us sequential read 45 us sequential write 115 us random read 55 us random write
Power Consumption	2.7 Watt write	3.8 Watt write	3.8 Watt write	3.8 Watt write	4.1 Watt write
Endurance	350 TBW	700 TBW	1400 TBW	2800 TBW	5600 TBW
Warranty	3 Years	3 Years	3 Years	3 Years	3 Years

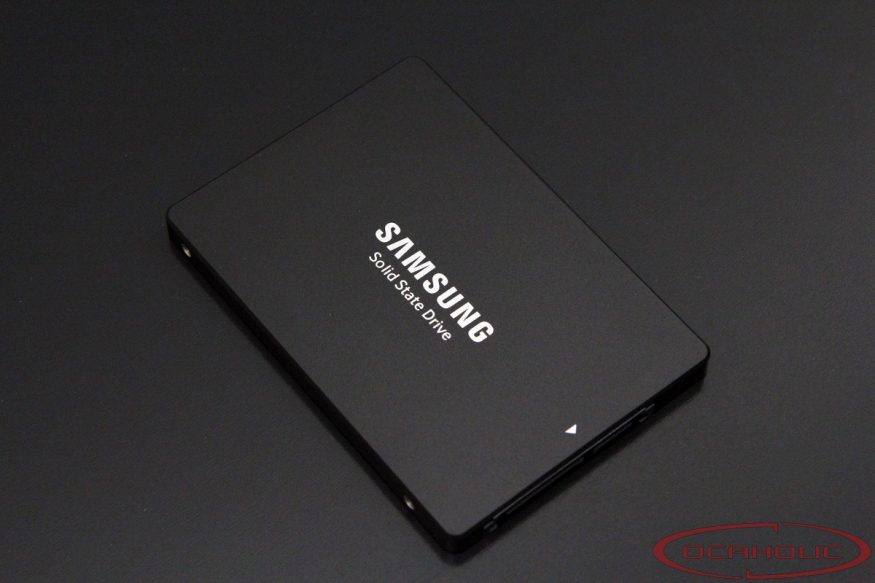

A few months ago Samsung announced two new series of SSDs suitable for the use in data centers. One of which is the PM863 and the other is called the SM863. Whereas the PM863 is recommended for read-intensive workloads (webservers, streaming services, …), the SM863 is designed for read-intensive environments such as OLTP databases. In this review we’re going to have a look at the PM863 with 960 Gigabyte capacity and first of all we want to have look at this drives key features. Let’s start with the Advanced ECC Engine, which, in combination with the End-to-End-Data protection makes sure that any discrepancies in the data path are eradicated in-flight. Apart from that there is also a power loss protection features. If an unexpected power failure occurs, the tantalum capacitors on the PCB can provide enough power that data in the DRAM cache can be written into the NAND flash memory, which means no data will be lost. What can also be mission-critical in a datacenter is an overheat protection. If the PM863 ever gets too hot the main controller automatically down clocks, which results in lower temperatures.

If we open the drive we find 3-bit TLC V-NAND flash memory. As always with drives from Samsung these chips a manufactured in-house. To be a bit more precise on these chips, Samsung is using 3D-V-NAND with 32 Layers. Per package they offer a storage density of 128 Gbit. If we do the maths, we realize that there is 1024GB of storage on this particular 960GB drive available. This means Samsung has put a 7 percent overprovisioning in place. Overprovisioning in general helps to increase performance as well as endurance, since the tear and wear on the NAND flash chips can be reduced.

Even more in detail we find a new Samsung Mercury controller, which is the successor of the MDX controller. The latter has been used in the predecessor of the PM863, the 845DC Evo. Comparing the two controllers, one of its main advantages is the fact, that Mercury can address more NAND Flash. That’s actually why there are PM863 Drives with up to 3.84 TB capacity available.
